SR3040PT, SR3020PT (SR3020PT - SR30150PT) 30.0 AMPS. Schottky Barrier Rectifiers

SR3040PT Description

30.0 AMPS.Schottky Barrier Rectifiers TO-3P/TO-247AD SR3020PT - SR30150PT www.DataSheet4U.com .

SR3040PT Features

* Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial construction For use in

SR3040PT Applications

* High temperature soldering guaranteed: 260oC/10seconds,0.17”(4.3mm)lead lengths at 5 lbs. , (2.3kg) tension Mechanical Data Cases: JEDEC TO-3P/TO-247AD molded plastic Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any Weight: 0.2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR3040PT, SR3020PT. Please refer to the document for exact specifications by model.

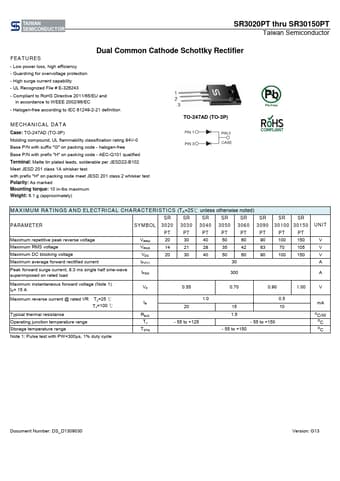

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SR3040PT, SR3020PT
Manufacturer
Taiwan Semiconductor Company
File Size
207.66 KB
Datasheet
SR3020PT_TaiwanSemiconductorCompany.pdf
Description
(SR3020PT - SR30150PT) 30.0 AMPS. Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SR3040PT, SR3020PT.
Please refer to the document for exact specifications by model.
