SR3050PT, SR3040PT, (SR3020PT - SR3060PT) 30.0 AMPS. Schottky Barrier Rectifiers

SR3020PT THRU SR3060PT www.DataSheet4U.com 30.0 AMPS.Schottky Barrier Rectifiers Voltage Range 20 to 60 Volts Current 30.0 Amperes TO-3P/TO-247AD Fe.

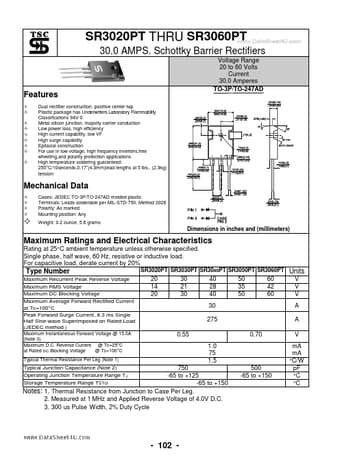

datasheet Preview Page 1 from Datasheet4u.com

SR3040PT_TaiwanSemiconductorCompany.pdf

SR3050PT Datasheet Preview — This datasheet PDF includes multiple part numbers: SR3050PT, SR3040PT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR3050PT, SR3040PT

Manufacturer:

Taiwan Semiconductor Company

File Size:

119.55 KB

Description:

(SR3020PT - SR3060PT) 30.0 AMPS. Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SR3050PT, SR3040PT.
Please refer to the document for exact specifications by model.

Features

* a a a a a a a a a Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial constr

Applications

* High temperature soldering guaranteed: 250°C/10seconds,0.17”(4.3mm)lead lengths at 5 lbs. , (2.3kg) tension Mechanical Data a a a a Cases: JEDEC TO-3P/TO-247AD molded plastic Terminals: Leads solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any Weight: 0.2 ounce, 5.6 gr
