SRAD330, SRAD320 (SRAD320 - SRAD360) Schottky Barrier Rectifiers

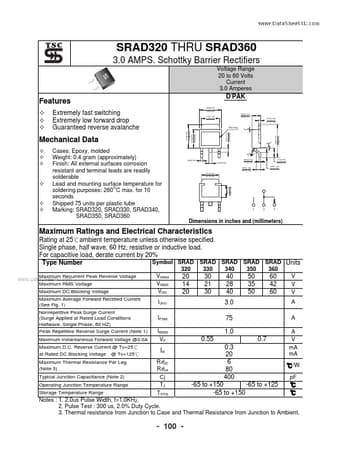

📥 Download Datasheet  Datasheet Preview Page 1

Description

SRAD320 THRU SRAD360 3.0 AMPS.Schottky Barrier Rectifiers Voltage Range 20 to 60 Volts Current 3.0 Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SRAD330, SRAD320. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
SRAD330, SRAD320
Manufacturer
Taiwan Semiconductor Company
File Size
82.30 KB
Datasheet
SRAD320_TaiwanSemiconductorCompany.pdf
Description
(SRAD320 - SRAD360) Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SRAD330, SRAD320.
Please refer to the document for exact specifications by model.

Features

* Extremely fast switching Extremely low forward drop Guaranteed reverse avalanche .274(6.95) .270(6.85) .250(6.55) .246(6.45) .250(6.55) .246(6.45) .211(5.36) .207(5.26) D-PAK .093(2.35) .089(2.25) .013(0.54) .011(0.48) Marking .043(1.10) .035(0.90) 0 5 .384(9.75) .364(9.25) .112(2.85) .092(2.35)
