TS2508 - 3A / 330KHz PWM Buck Converter

Taiwan Semiconductor Company

📥 Download Datasheet

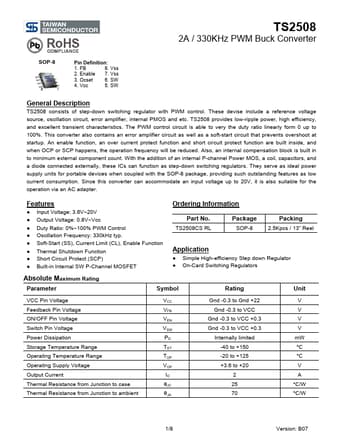

TS2508 Datasheet Preview — Preview of TS2508 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TS2508
Manufacturer: Taiwan Semiconductor Company
File Size: 233.30 KB
Datasheet: TS2508_TaiwanSemiconductorCompany.pdf
Description: 3A / 330KHz PWM Buck Converter

TS2508 Product details

Description

TS2508 consists of step-down switching regulator with PWM control.

Features

as low current consumption. Since this converter can accommodate an input voltage up to 20V, it is also suitable for the operation via an AC adapter. Features.
Input Voltage: 3.6V~20V.
Output Voltage: 0.8V~Vcc.
Duty Ratio: 0%~100% PWM Control.
Oscillation Frequency: 330kHz typ.
Soft-Start (SS), Current Limit (CL), Enable Function.
Thermal Shutdown Function.
Short Circuit Protect (SCP).
Built-in Internal SW P-Channel.
