TS2508A Datasheet - Taiwan Semiconductor Company

TS2508A, 3A / 330KHz PWM Buck Converter

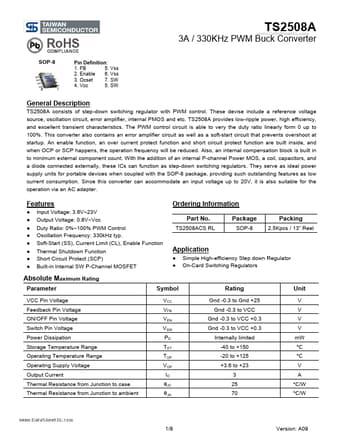

3A / 330KHz PWM Buck Converter SOP-8 Pin Definition: 1.FB 5.Vss 2.Enable 6.Vss 3.Ocset 7.SW 4.Vcc 5.SW www.DataSheet4U.com TS2508A General .
TS2508A consists of step-down switching regulator with PWM control.

datasheet Preview Page 1 from Datasheet4u.com

TS2508A_TaiwanSemiconductorCompany.pdf

TS2508A Datasheet Preview — Preview of TS2508A PDF

Datasheet Details

Part number:

TS2508A

Manufacturer:

Taiwan Semiconductor Company

File Size:

266.61 KB

Description:

3A / 330KHz PWM Buck Converter

Features

* as low current consumption. Since this converter can accommodate an input voltage up to 20V, it is also suitable for the operation via an AC adapter. Features
* Input Voltage: 3.6V~23V Output Voltage: 0.8V~Vcc Duty Ratio: 0%~100% PWM Control Oscillation

Applications

* is sufficient Output Capacitor Selection The output capacitor is required to filter the output and provide regulator loop stability. The important capacitor parameters are; the 100KHz Equivalent Series Resistance (ESR), the RMS ripples current rating, voltage rating, and capacitance value. For the o
