TS358 - Single Supply Dual Operational Amplifiers

Taiwan Semiconductor Company

The TS358 by Taiwan Semiconductor Company is a Single Supply Dual Operational Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

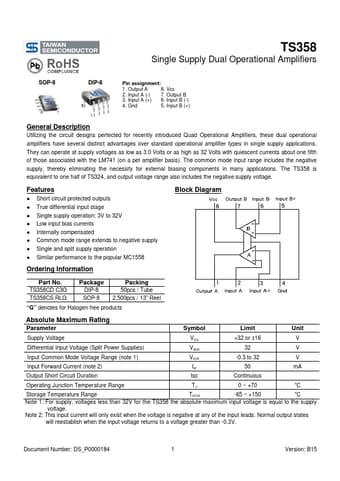

TS358 Single Supply Dual Operational Amplifiers by Taiwan Semiconductor Company - Datasheet Preview — Official preview page of the **TS358** Single Supply Dual Operational Amplifiers datasheet (Taiwan Semiconductor Company).

Datasheet Details

Part number	TS358
Manufacturer	Taiwan Semiconductor Company
File Size	303.09 KB
Description	Single Supply Dual Operational Amplifiers
Datasheet	TS358_TaiwanSemiconductorCompany.pdf
Additional preview pages of the TS358 datasheet.

TS358 Product details

Description

Utilizing the circuit designs perfected for recently introduced Quad Operational Amplifiers, these dual operational amplifiers have several distinct advantages over standard operational amplifier types in single supply applications.

Features

Short circuit protected outputs.
True differential input stage.
Single supply operation: 3V to 32V.
Low input bias currents.
Internally compensated.
Common mode range extends to negative supply.
Single and split supply operation.
Similar performance to the popular MC1558 Ordering Information Block Diagram Part No. TS358CD C3G TS358CS RLG Package DIP-8 SOP-8 Packing 50pcs / Tube 2,500pcs / 13” Reel “G” denotes for Halogen free products Absolute Maxim.
