TS35P07G, TS35P05G, Standard Bridge Rectifier

TS35P05G * TS35P07G Taiwan Semiconductor 35A, 600V - 1000V Standard Bridge Rectifier .
only.

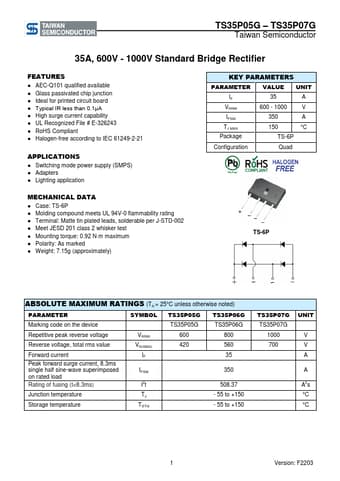

 datasheet Preview Page 1 from Datasheet4u.com

TS35P05G_TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TS35P07G, TS35P05G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TS35P07G, TS35P05G

Manufacturer:

Taiwan Semiconductor

File Size:

526.08 KB

Description:

Standard Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: TS35P07G, TS35P05G.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* Ideal for printed circuit board
* Typical IR less than 0.1μA
* High surge current capability
* UL Recognized File # E-326243
* RoHS Compliant

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 35 A 600 - 1000 V 350 A 150 °C TS-6P Configuration Quad MECHANICAL DATA
* Case: TS-6P
* Molding compound meets UL 94V-0 flammabili
