TSM6968D - 20V Dual N-Channel MOSFET w/ESD Protected

Key Features

  • — — — — — Advanced trench process technology High density cell design for ultra low on-resistance Excellent thermal and electrical capabilities Specially designed for Li-ion battery packs. Battery switch.

📥 Download Datasheet

Datasheet Details

Part number TSM6968D
Manufacturer Taiwan Semiconductor Company
File Size 197.45 KB
Description 20V Dual N-Channel MOSFET w/ESD Protected
Datasheet download datasheet TSM6968D Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TSM600-250F Resettable PPTC Littelfuse
TSM600-250F-RA Resettable PPTC Littelfuse
TSM600-400F Resettable PPTC Littelfuse
TSM600N25E N-Channel Power MOSFET Taiwan Semiconductor
TSM600P03CS P-Channel Power MOSFET Taiwan Semiconductor

Other Datasheets by Taiwan Semiconductor Company

Part Number Description
TSM6968SD 20V Dual N-Channel MOSFET w/ESD Protected
TSM6963SD 20V Dual P-Channel MOSFET
TSM6970D 20V Dual N-Channel MOSFET w/ESD Protected
TSM6981D 20V Dual P-Channel MOSFET
TSM6988D 20V Dual N-Channel MOSFET w/ESD Protected

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

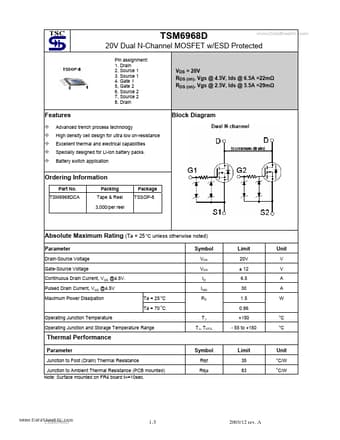

TSM6968D Pin assignment: 1. Drain 2. Source 1 3. Source 1 4. Gate 1 5, Gate 2 6. Source 2 7, Source 2 8. Drain www.DataSheet4U.com 20V Dual N-Channel MOSFET w/ESD Protected VDS = 20V RDS (on), Vgs @ 4.5V, Ids @ 6.5A =22mΩ RDS (on), Vgs @ 2.5V, Ids @ 5.5A =29mΩ Features — — — — — Advanced trench process technology High density cell design for ultra low on-resistance Excellent thermal and electrical capabilities Specially designed for Li-ion battery packs. Battery switch application Block Diagram Ordering Information Part No. TSM6968DCA Packing Tape & Reel 3,000/per reel Package TSSOP-8 Absolute Maximum Rating (Ta = 25 oC unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @4.5V. Pulsed Drain Current, VGS @4.
