1N4002G-K - Glass Passivated Rectifier

This page provides the datasheet information for the 1N4002G-K, a member of the 1N4001G-K Glass Passivated Rectifier family.

Datasheet Summary

Description

(TA = 25°C unless otherwise noted) Fig1.

Fig2.

Features

  • Glass passivated chip junction.
  • High current capability, Low VF.
  • High reliability.
  • High surge current capability.
  • Low power loss, high efficiency.
  • Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

Datasheet preview – 1N4002G-K

Datasheet Details

Part number 1N4002G-K
Manufacturer Taiwan Semiconductor
File Size 534.07 KB
Description Glass Passivated Rectifier
Datasheet download datasheet 1N4002G-K Datasheet
Additional preview pages of the 1N4002G-K datasheet.

📁 Similar Datasheet

  • 1N4002G - 1.0A GLASS PASSIVATED STANDARD DIODE (WON-TOP)
  • 1N4002G - Rectifiers (NXP)
  • 1N4002G - 1.0A GLASS PASSIVATED RECTIFIER (Diodes Incorporated)
  • 1N4002G - 1.0 Amp Glass Passivated Rectifiers (SeCoS)
  • 1N4002G - GENERAL PURPOSE SILICON RECTIFIER (DC COMPONENTS)
  • 1N4002G - 1.0A GLASS PASSIVATED RECTIFIER (SMC Diode)
  • 1N4002G - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (Rectron)
  • 1N4002G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS (EIC)
  • 1N4002GL - 1.0A GLASS PASSIVATED RECTIFIER (Diodes Incorporated)
  • 1N4002GP - 1 Amp. Glass Passivated Junction Rectifier (FAGOR)
Other Datasheets by Taiwan Semiconductor
  • 1N4002G - Glass Passivated Rectifiers
  • 1N4002GP - Glass Passivated Junction Plastic Rectifiers
  • 1N4002S - Silicon Rectifiers
  • 1N4001G - Glass Passivated Rectifiers
  • 1N4001G-K - Glass Passivated Rectifier
  • 1N4001GP - Glass Passivated Junction Plastic Rectifiers
  • 1N4001S - Silicon Rectifiers
  • 1N4003G - Glass Passivated Rectifiers

Full PDF Text Transcription

Click to expand full text

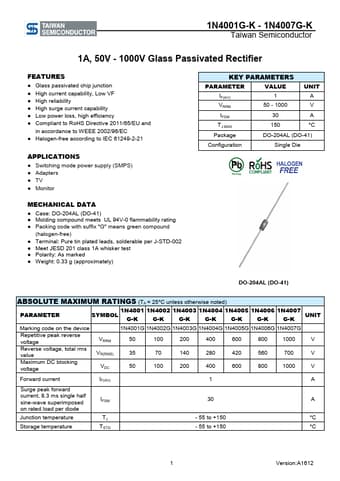

4 1N4001G-K - 1N4007G-K Taiwan Semiconductor 1A, 50V - 1000V Glass Passivated Rectifier FEATURES ● Glass passivated chip junction ● High current capability, Low VF ● High reliability ● High surge current capability ● Low power loss, high efficiency ● Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC ● Halogen-free according to IEC 61249-2-21 APPLICATIONS ● Switching mode power supply (SMPS) ● Adapters ● TV ● Monitor KEY PARAMETERS PARAMETER IF(AV) VRRM IFSM TJ MAX Package VALUE 1 UNIT A 50 - 1000 V 30 A 150 °C DO-204AL (DO-41) Configuration Single Die MECHANICAL DATA ● Case: DO-204AL (DO-41) ● Molding compound meets UL 94V-0 flammability rating ● Packing code with suffix "G" means green compound (halogen-free) ● Terminal: Pure tin plated leads, solde
