1N4002G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS

This page provides the datasheet information for the 1N4002G, a member of the 1N4001G GLASS PASSIVATED JUNCTION SILICON RECTIFIERS family.

Datasheet Summary

Features

  • :.
  • Glass passivated chip.
  • High current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – 1N4002G

Datasheet Details

Part number 1N4002G
Manufacturer EIC
File Size 23.92 KB
Description GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
Datasheet download datasheet 1N4002G Datasheet

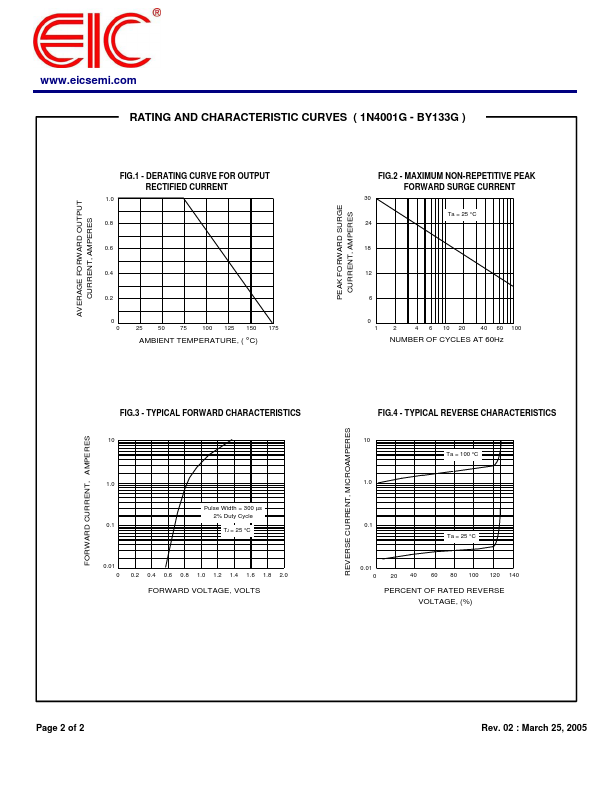

Additional preview pages of the 1N4002G datasheet.

📁 Similar Datasheet

  • 1N4002G - 1.0A GLASS PASSIVATED STANDARD DIODE (WON-TOP)
  • 1N4002G - Rectifiers (NXP)
  • 1N4002G - 1.0A GLASS PASSIVATED RECTIFIER (Diodes Incorporated)
  • 1N4002G - 1.0 Amp Glass Passivated Rectifiers (SeCoS)
  • 1N4002G - GENERAL PURPOSE SILICON RECTIFIER (DC COMPONENTS)
  • 1N4002G - 1.0A GLASS PASSIVATED RECTIFIER (SMC Diode)
  • 1N4002G - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (Rectron)
  • 1N4002G - Glass Passivated Rectifiers (Taiwan Semiconductor)
  • 1N4002G-K - Glass Passivated Rectifier (Taiwan Semiconductor)
  • 1N4002GL - 1.0A GLASS PASSIVATED RECTIFIER (Diodes Incorporated)
Other Datasheets by EIC
  • 1N4002 - SILICON RECTIFIER DIODES
  • 1N4002W - Surface Mount General Purpose Silicon Rectifiers
  • 1N4001 - SILICON RECTIFIER DIODES
  • 1N4001G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N4001W - Surface Mount General Purpose Silicon Rectifiers
  • 1N4003 - SILICON RECTIFIER DIODES
  • 1N4003G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N4003W - Surface Mount General Purpose Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text

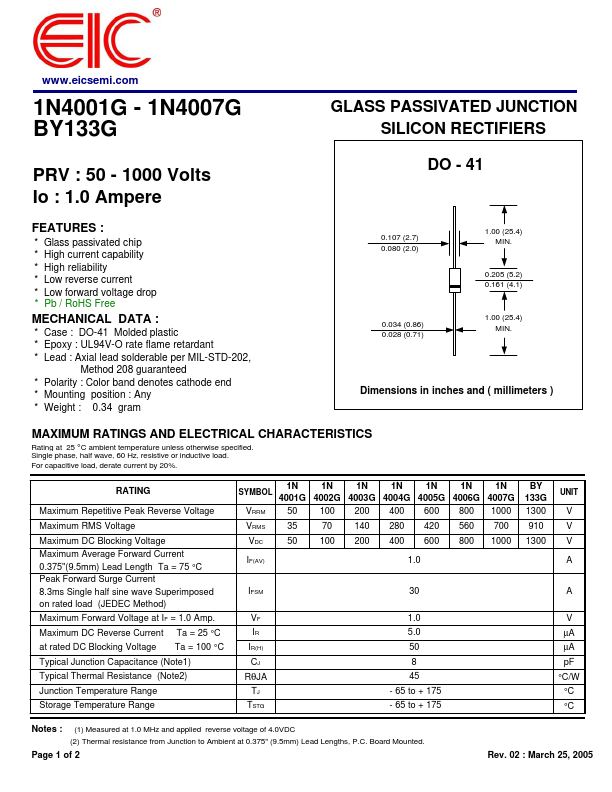

www.eicsemi.com 1N4001G - 1N4007G BY133G GLASS PASSIVATED JUNCTION SILICON RECTIFIERS PRV : 50 - 1000 Volts Io : 1.0 Ampere DO - 41 FEATURES : * Glass passivated chip * High current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.34 gram 0.107 (2.7) 0.080 (2.0) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.2) 0.161 (4.1) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
