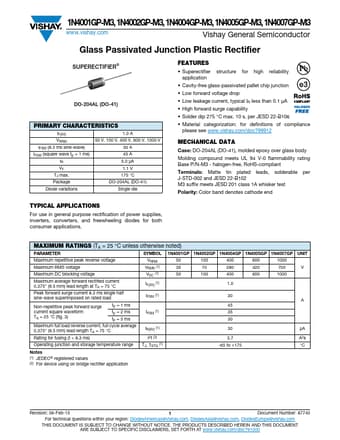

1N4001GP-M3, 1N4002GP-M3, 1N4004GP-M3, 1N4005GP-M3, 1N4007GP-M3 www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier SUPERECTIFIER® DO-204AL (DO-41) PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM (8.3 ms sine-wave) IFSM (square wave tp = 1 ms) IR VF TJ max.
Package 1.0 A 50 V, 100 V, 400 V, 600 V, 1000 V 30 A 45 A 5.0 μA 1.1 V 175 °C DO-204AL (DO-41) Diode variations Single die TYPICAL APPLICATIONS For use in general purpose rectification of power supplies
1N4002GP-M3 Features
* Superectifier structure for high reliability application
* Cavity-free glass-passivated pallet chip junction
* Low forward voltage drop
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Solder dip 275 °C max. 10 s,
Datasheet Details
1N4002GP-M3, 1N4001GP-M3
271.83 KB
Glass passivated junction plastic rectifier.
This datasheet PDF includes multiple part numbers: 1N4002GP-M3, 1N4001GP-M3.
Please refer to the document for exact specifications by model.
