1N4002GP Datasheet, Rectifier, FAGOR

1N4002GP Features

• Rectifier • Glass passivated chip junction • Hyperectifier structure for high reliability • Cavity-free glass-passivated junction • Low forward voltage drop • Low leakage current, typical IR less

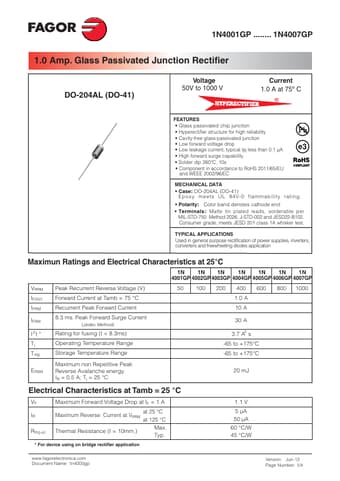

PDF File Details

Part number:

1N4002GP

Manufacturer:

FAGOR

File Size:

271.57kb

Download:

📄 Datasheet

Description:

1 amp. glass passivated junction rectifier.

1N4002GP Application

• Applications Used in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application Maximun Ratings and
