1N4003, 1N4001 SILICON RECTIFIER DIODES

1N4003 Description

1N4001 - 1N4007 SILICON RECTIFIER DIODES PRV : 50 - 1300 Volts Io : 1.0 Ampere DO - 41 .

1N4003 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4003, 1N4001. Please refer to the document for exact specifications by model.

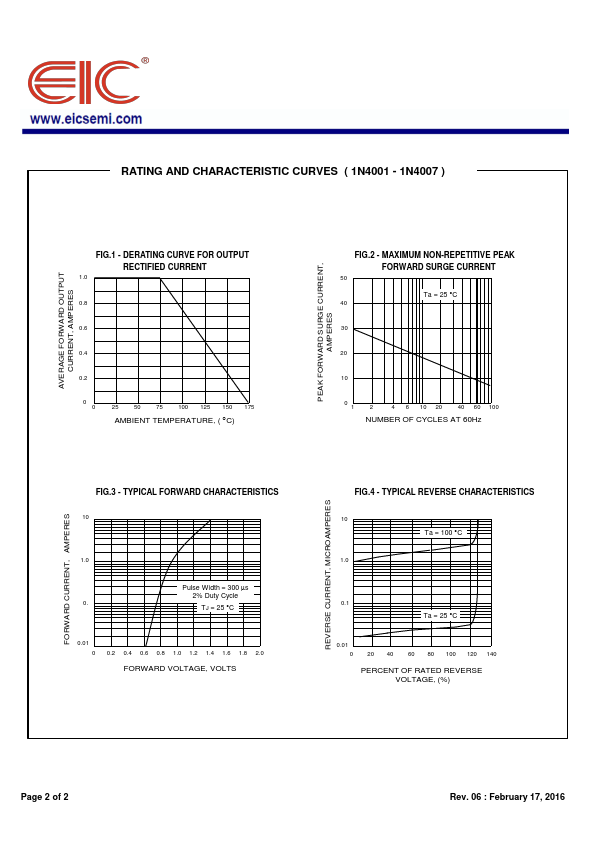

datasheet Preview Page 2

Datasheet Details

Part number
1N4003, 1N4001
Manufacturer
EIC
File Size
359.92 KB
Datasheet
1N4001-EIC.pdf
Description
SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N4003, 1N4001.
Please refer to the document for exact specifications by model.
