1N4001G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS

1N4001G Description

www.eicsemi.com 1N4001G - 1N4007G BY133G GLASS PASSIVATED JUNCTION SILICON RECTIFIERS PRV : 50 - 1000 Volts Io : 1.0 Ampere DO - 41 .

1N4001G Features

* :
* Glass passivated chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-S

📥 Download Datasheet

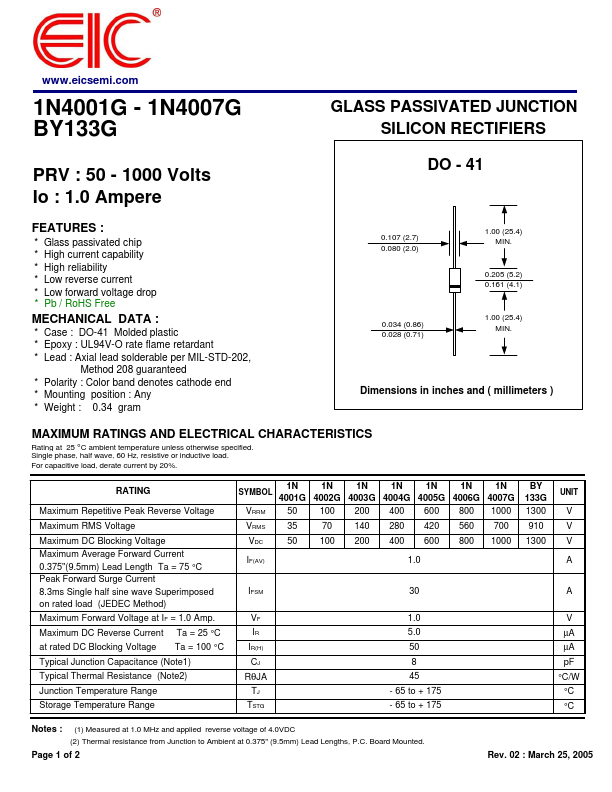

Preview of 1N4001G PDF
datasheet Preview Page 2

Datasheet Details

Part number
1N4001G
Manufacturer
EIC
File Size
23.92 KB
Datasheet
1N4001G-EIC.pdf
Description
GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
