1N4001 - SILICON RECTIFIER DIODES

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – 1N4001

Datasheet Details

Part number 1N4001
Manufacturer EIC
File Size 359.92 KB
Description SILICON RECTIFIER DIODES
Datasheet download datasheet 1N4001 Datasheet

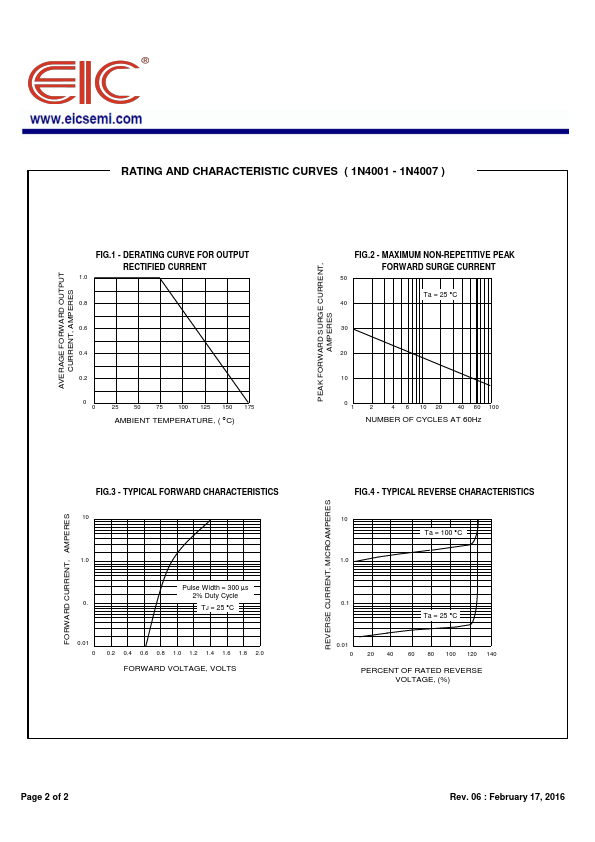

Additional preview pages of the 1N4001 datasheet.

📁 Similar Datasheet

  • 1N4001 - 1.0A STANDARD DIODE (WON-TOP)
  • 1N4001 - 1.0A RECTIFIER (Vishay Siliconix)
  • 1N4001 - Axial Lead Standard Recovery Rectifiers (ON Semiconductor)
  • 1N4001 - General Purpose Rectifiers (Fairchild Semiconductor)
  • 1N4001 - General Purpose Plastic Rectifiers (LRC)
  • 1N4001 - 1.0A RECTIFIER (Diodes)
  • 1N4001 - General Purpose Plastic Rectifiers (New Jersey Semi-Conductor)
  • 1N4001 - 1.0 Amp Rectifier (MCC)
  • 1N4001 - AXIAL LEADED RECTIFIER DIODES (Sunmate)
  • 1N4001 - 1.0 SILICON RECTIFIER (SMC Diode)
Other Datasheets by EIC
  • 1N4001G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N4001W - Surface Mount General Purpose Silicon Rectifiers
  • 1N4002 - SILICON RECTIFIER DIODES
  • 1N4002G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N4002W - Surface Mount General Purpose Silicon Rectifiers
  • 1N4003 - SILICON RECTIFIER DIODES
  • 1N4003G - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N4003W - Surface Mount General Purpose Silicon Rectifiers

Full PDF Text Transcription

Click to expand full text

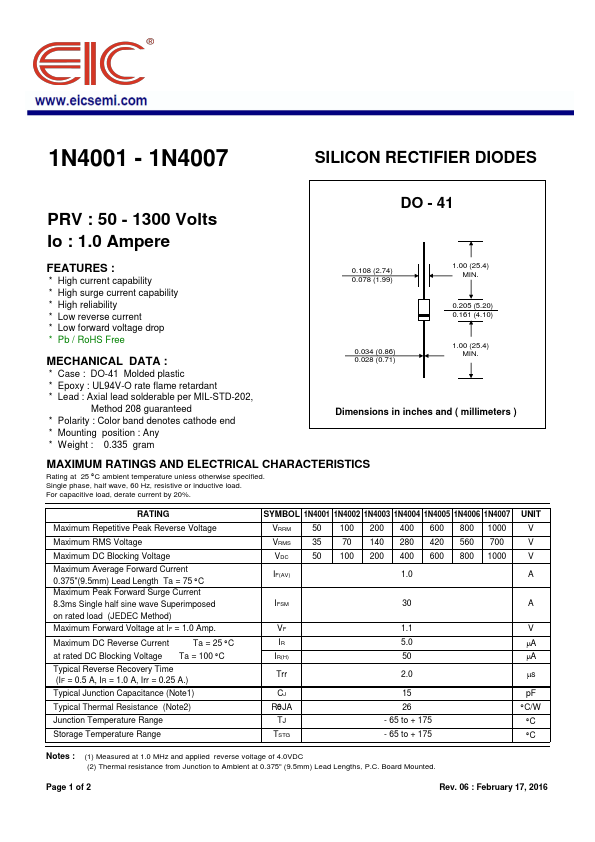

1N4001 - 1N4007 SILICON RECTIFIER DIODES PRV : 50 - 1300 Volts Io : 1.0 Ampere DO - 41 FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.335 gram 0.108 (2.74) 0.078 (1.99) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.20) 0.161 (4.10) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 C ambient temperature unless otherwise specified.
