1N4001G-K - Glass Passivated Rectifier

Datasheet Summary

Description

(TA = 25°C unless otherwise noted) Fig1.

Fig2.

Features

  • Glass passivated chip junction.
  • High current capability, Low VF.
  • High reliability.
  • High surge current capability.
  • Low power loss, high efficiency.
  • Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
  • Halogen-free according to IEC 61249-2-21.

📥 Download Datasheet

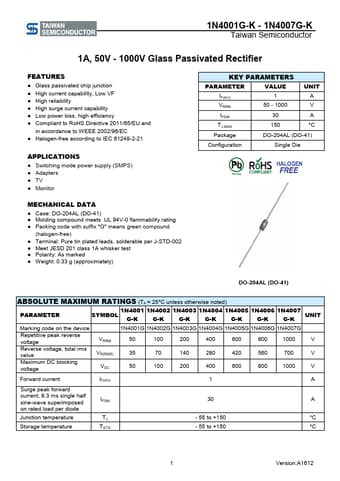

Datasheet preview – 1N4001G-K

Datasheet Details

Part number 1N4001G-K
Manufacturer Taiwan Semiconductor
File Size 534.07 KB
Description Glass Passivated Rectifier
Datasheet download datasheet 1N4001G-K Datasheet
