1N4003FL, 1N4001FL General Purpose Plastic Rectifier

SMC Diode

Description

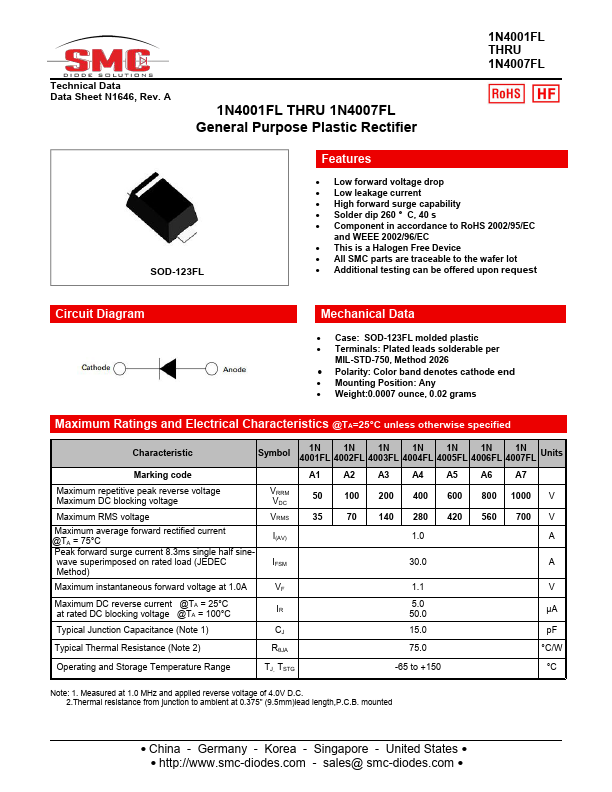

Technical Data Data Sheet N1646, Rev.A 1N4001FL THRU 1N4007FL General Purpose Plastic Rectifier 1N4001FL THRU 1N4007FL SOD-123FL .

📥 Download Datasheet

1N4003FL Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4003FL, 1N4001FL. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N4003FL, 1N4001FL
Manufacturer: SMC Diode
File Size: 314.64 KB
Datasheet: 1N4001FL-SMCDiode.pdf
Description: General Purpose Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: 1N4003FL, 1N4001FL.
Please refer to the document for exact specifications by model.

Features

* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Solder dip 260 °C, 40 s
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
* This is a Halogen Free Device
* All SMC parts are traceable to the wafer lot
* Additional test

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und
