1N5391G-T Glass Passivated Rectifier

1N5391G-T Description

4 1N5391G-T - 1N5399G-T Taiwan Semiconductor 1.5A, 50V - 1000V Glass Passivated Rectifier .

1N5391G-T Features

* Glass passivated chip junction
* High efficiency, Low VF
* High current capability
* High surge current capability
* Low power loss
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

1N5391G-T Applications

* Switching mode power supply (SMPS)
* Adapters
* TV
* Monitor KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 1.5 A 50 - 1000 V 50 A 150 °C DO-204AC (DO-15) Configuration Single die MECHANICAL DATA
* Case: DO-204AC (DO-15)
* Molding compound

📥 Download Datasheet

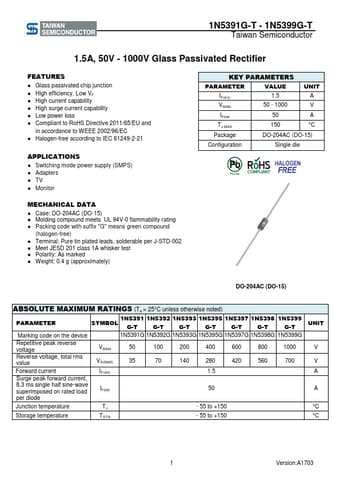

Preview of 1N5391G-T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5391G-T
Manufacturer
Taiwan Semiconductor
File Size
248.15 KB
Datasheet
1N5391G-T-TaiwanSemiconductor.pdf
Description
Glass Passivated Rectifier
