1N5391SG - GLASS PASSIVATED SILICON RECTIFIER

Product Overview

📥 Download Datasheet

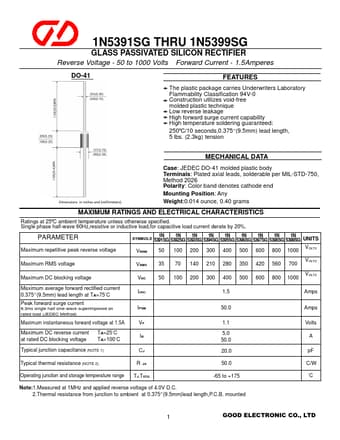

1N5391SG GLASS PASSIVATED SILICON RECTIFIER by GOOD ELECTRONIC - Datasheet Preview — Datasheet preview – 1N5391SG

Datasheet Details

Part number	1N5391SG
Manufacturer	GOOD ELECTRONIC
File Size	145.05 KB
Description	GLASS PASSIVATED SILICON RECTIFIER
Datasheet	1N5391SG Datasheet
Additional preview pages of the 1N5391SG datasheet.

Product details

Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension.
