1N5394SG, 1N5391SG GLASS PASSIVATED SILICON RECTIFIER

1N5394SG Description

1N5391SG THRU 1N5399SG GLASS PASSIVATED SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.5Amperes DO-41 .

1N5394SG Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Construction utilizes void-free molded plastic technique Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5394SG, 1N5391SG. Please refer to the document for exact specifications by model.

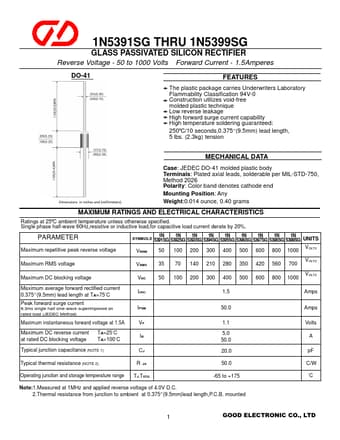

datasheet Preview Page 2

Datasheet Details

Part number
1N5394SG, 1N5391SG
Manufacturer
GOOD ELECTRONIC
File Size
145.05 KB
Datasheet
1N5391SG-GOODELECTRONIC.pdf
Description
GLASS PASSIVATED SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N5394SG, 1N5391SG.
Please refer to the document for exact specifications by model.
