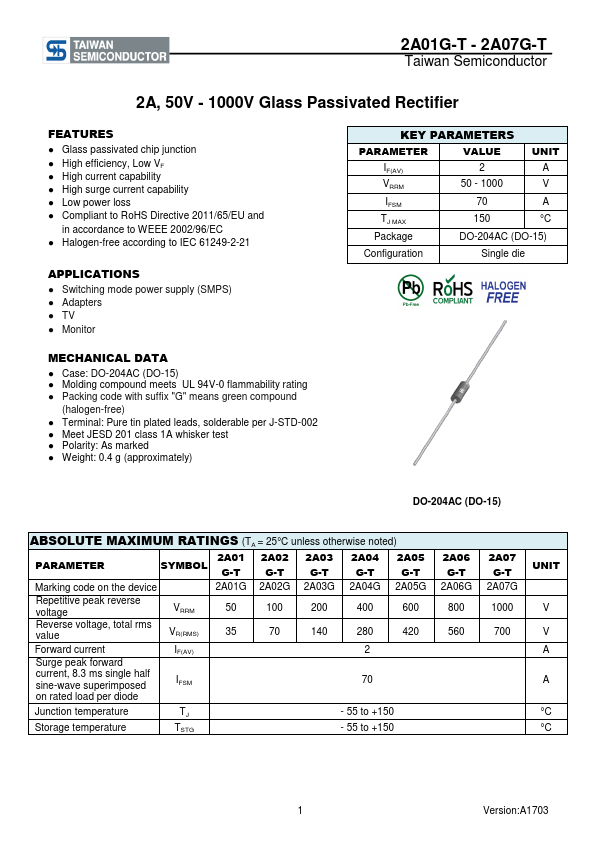

4 2A01G-T - 2A07G-T Taiwan Semiconductor 2A, 50V - 1000V Glass Passivated Rectifier .
Green compound
2
Version:A1703
4

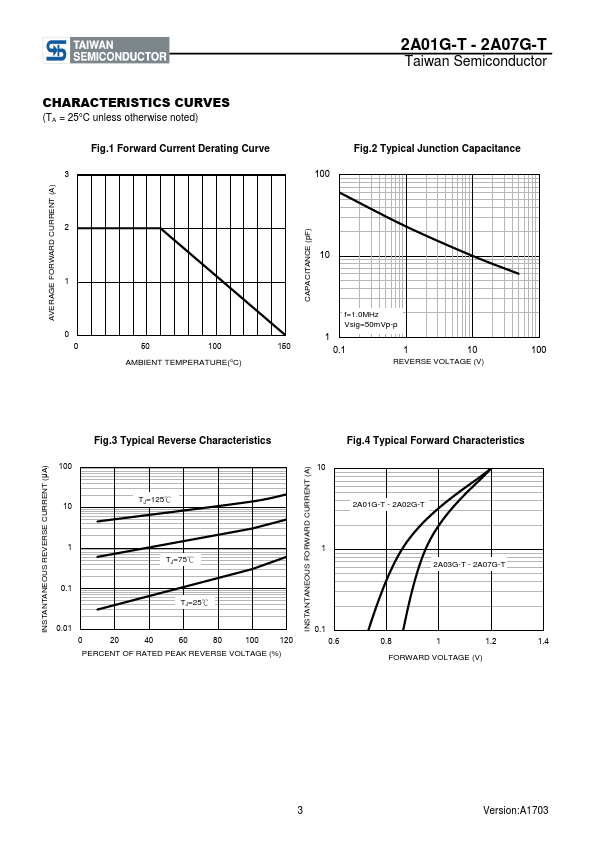

CHARACTERISTICS CURVES
(TA = 25°C unless otherwise noted) Fig.
Features
* Glass passivated chip junction
* High efficiency, Low VF
* High current capability
* High surge current capability
* Low power loss
* Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
Applications
* Switching mode power supply (SMPS)
* Adapters
* TV
* Monitor
KEY PARAMETERS
PARAMETER
VALUE
UNIT
IF(AV) VRRM IFSM TJ MAX Package
2
A
50 - 1000
V
70
A
150
°C
DO-204AC (DO-15)
Configuration
Single die
MECHANICAL DATA
* Case: DO-204AC (DO-15)
* Molding compoun
