2A07G-T, 2A01G-T - 2A Glass Passivated Rectifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2A07G-T, 2A01G-T. Please refer to the document for exact specifications by model.

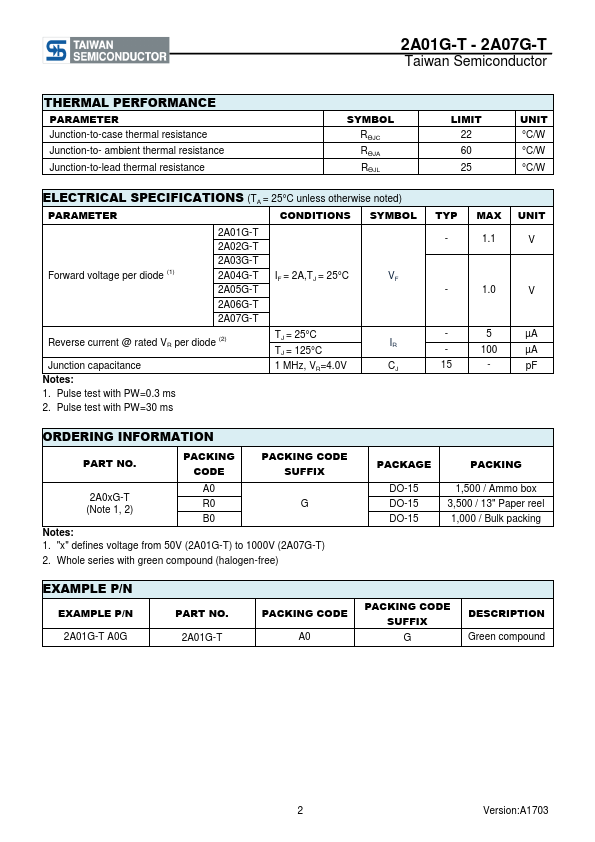

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2A07G-T, 2A01G-T
Manufacturer Taiwan Semiconductor ↗
File Size 255.42 KB
Description 2A Glass Passivated Rectifier
Datasheet download datasheet 2A01G-T-TaiwanSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: 2A07G-T, 2A01G-T.
Please refer to the document for exact specifications by model.

2A07G-T Product details

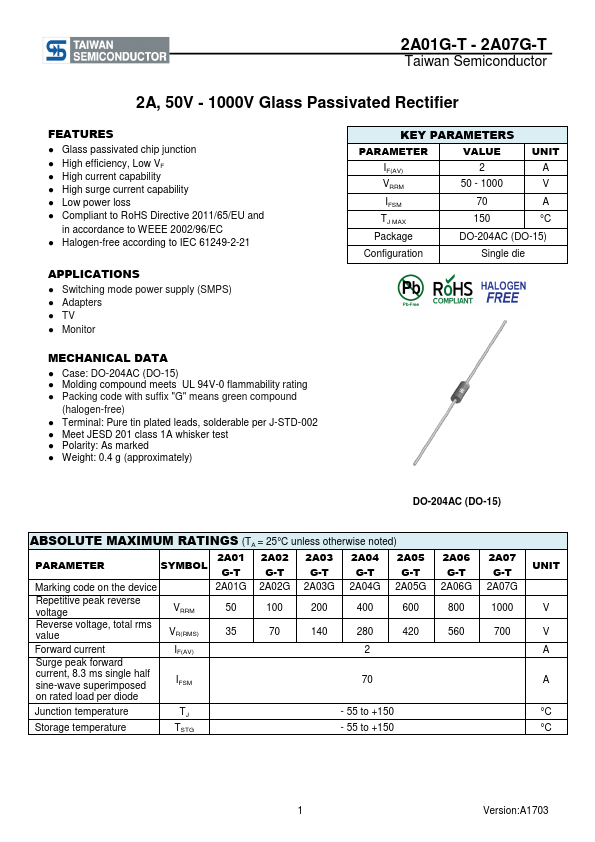

Description

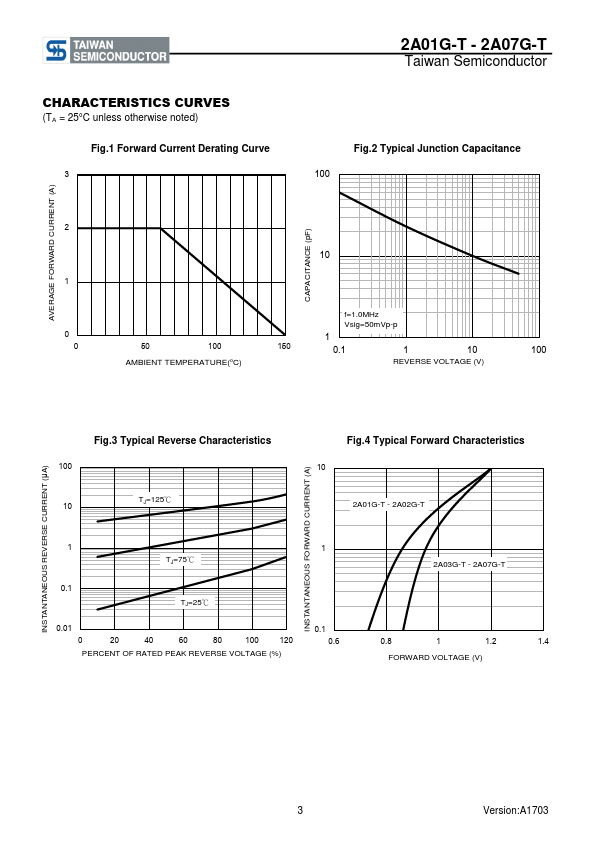

Green compound 2 Version:A1703 4 CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) Fig.1 Forward Current Derating Curve 3 2A01G-T - 2A07G-T Taiwan Semiconductor Fig.2 Typical Junction Capacitance 100 AVERAGE FORWARD CURRENT (A) CAPACITANCE (pF) 2 10 1 f=1.0MHz Vsig=50mVp-p 0 1 0 50 100 150 0.1 1 10 100 AMBIENT TEMPERATURE(oC) REVERSE VOLTAGE (V) Fig.3 Typical Reverse Characteristics 100 Fig.4 Typical Forward Characteristics 10 10 INSTANTANEOUS FORWARD CURRENT (A)
