BA158

Fast Recovery Rectifiers

BA158 Features

* - High efficiency, Low VF - High current capability - High reliability - High surge current capability - Low power loss - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition BA157 thru BA159 Taiwan Semiconductor MECHANIC

BA158 General Description

Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.1- MAXIMUM FORWARD CURRENT DERATING CURVE 1.25 1 0.75 0.5 0.25 RESISTIVE OR INDUCTIVE LOAD 0 0 25 50 75 100 125 150 LEAD TEMPERATURE (oC) INSTANTANEOUS REVERSE CURRENT (μA) 100.

BA158 Datasheet (369.64 KB)

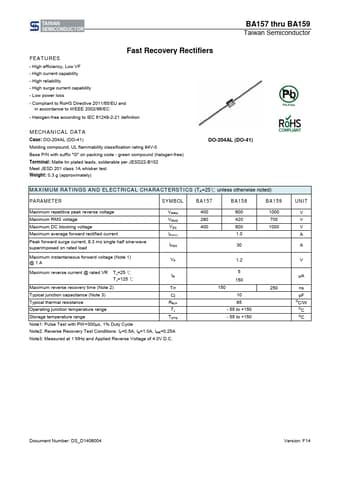

Preview of BA158 PDF

Datasheet Details

Part number:

BA158

Manufacturer:

Taiwan Semiconductor

File Size:

369.64 KB

Description:

Fast recovery rectifiers.
