BA159G, BA157G, Glass Passivated Fast Recovery Rectifiers

BA157G * BA159G Taiwan Semiconductor 1A, 400V - 1000V Fast Recovery Rectifier .
only.

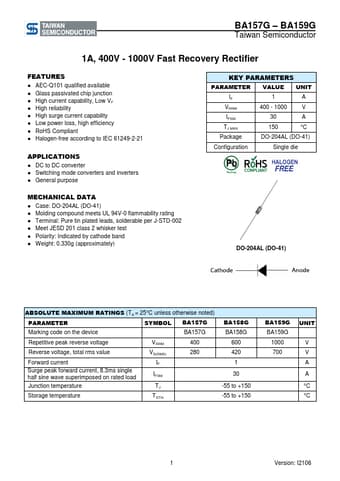

datasheet Preview Page 1 from Datasheet4u.com

BA157G-TaiwanSemiconductor.pdf

BA159G Datasheet Preview — This datasheet PDF includes multiple part numbers: BA159G, BA157G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BA159G, BA157G

Manufacturer:

Taiwan Semiconductor

File Size:

521.00 KB

Description:

Glass Passivated Fast Recovery Rectifiers

Note:

This datasheet PDF includes multiple part numbers: BA159G, BA157G.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* High current capability, Low VF
* High reliability
* High surge current capability
* Low power loss, high efficiency
* RoHS Compliant

Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF 1 A VRRM 400 - 1000 V IFSM 30 A TJ MAX 150 °C Package DO-204AL (DO-41) Configuration Single die MECHANICAL DATA
* Case: DO-204AL (DO-41)
* Mo
