BZT52C2V4S, SMD Zener Diode

BZT52C2V4S - BZT52C75S Taiwan Semiconductor 200mW, 5% Tolerance SMD Zener Diode .

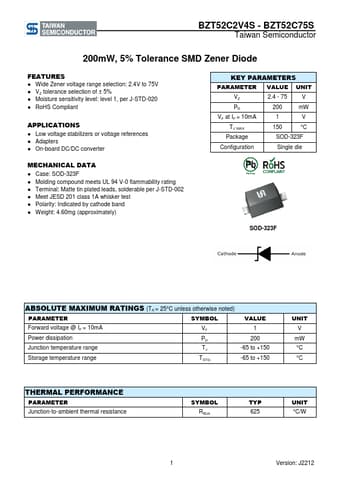

datasheet Preview Page 1 from Datasheet4u.com

BZT52C2V4S_TaiwanSemiconductor.pdf

BZT52C2V4S Datasheet Preview — Preview of BZT52C2V4S PDF

Datasheet Details

Part number:

BZT52C2V4S

Manufacturer:

Taiwan Semiconductor

File Size:

352.62 KB

Description:

SMD Zener Diode

Features

* Wide Zener voltage range selection: 2.4V to 75V
* VZ tolerance selection of ± 5%
* Moisture sensitivity level: level 1, per J-STD-020

Applications

* Low voltage stabilizers or voltage references
* Adapters
* On-board DC/DC converter KEY PARAMETERS PARAMETER VALUE UNIT VZ 2.4 - 75 V PD 200 mW VF at IF = 10mA 1 V TJ MAX 150 °C Package SOD-323F Configuration Single die MECHANICAL DATA
* Case: SOD-323F
* Moldi
