BZT52C2V7-G Datasheet - Taiwan Semiconductor

Zener Voltage Tolerance Zener Diode

BZT52C2V7-G Features

* - Wide zener voltage range selection: 2.4V to 43V - Surface Mount Device Type - Moisture sensitivity level 1 - Pb free and RoHS compliant - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code - Ideal for Surface Mounted Applications SOD-123 MECHANICAL DATA - C

BZT52C2V7-G General Description

CODE G Green compound G Green compound Document Number: DS_S1402010 Version: A14 Small Signal Product DIMENSIONS SOD-123 B CA D F G E H BZT52C2V4-G~BZT52C43-G Taiwan Semiconductor DIM. A B C D E F G H Unit (mm) Min Max 1.40 1.80 3.55 3.85 0.45 0.70 2.55 2.85 0.95 1.35 0.05 0.15 0.50 REF - 0.

BZT52C2V7-G Datasheet (85.19 KB)

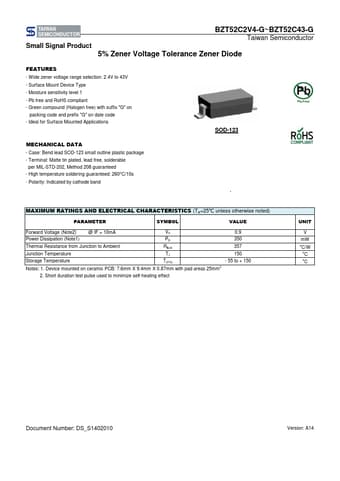

Preview of BZT52C2V7-G PDF

Datasheet Details

Part number:

BZT52C2V7-G

Manufacturer:

Taiwan Semiconductor

File Size:

85.19 KB

Description:

Zener voltage tolerance zener diode.
