BZT52C2V7K, BZT52C2V0K Datasheet - Taiwan Semiconductor

BZT52C2V7K Surface Mount Zener SMD Zener Diode

Green compound Green compound Document Number: DS_S1403007 Version: C14 Small Signal Product PACKAGE OUTLINE DIMENSIONS BZT52C2V0K ~ BZT52C75K Taiwan Semiconductor DIM. A B C D E F Unit (mm) Min Max 0.70 0.90 1.50 1.70 0.25 0.40 1.10 1.30 0.50 0.77 0.07 0.20 Unit (inch) Min Max 0.028 0.035.

BZT52C2V7K Features

* - Wide zener voltage range selection : 2.4V to 75V - Surface Mount Device type - Moisture sensitivity level 1 - Pb free and RoHS compliant - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code - Matte Tin(Sn) lead finish with Nickel(Ni) underplate MECHANICAL DAT

BZT52C2V0K-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: BZT52C2V7K, BZT52C2V0K. Please refer to the document for exact specifications by model.

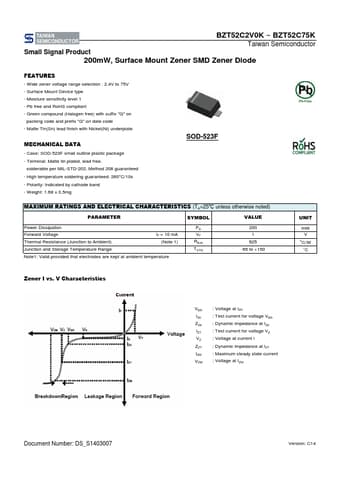

BZT52C2V7K Datasheet Preview Page 2 BZT52C2V7K Datasheet Preview Page 3

Datasheet Details

Part number:

BZT52C2V7K, BZT52C2V0K

Manufacturer:

Taiwan Semiconductor

File Size:

207.06 KB

Description:

Surface mount zener smd zener diode.

Note:

This datasheet PDF includes multiple part numbers: BZT52C2V7K, BZT52C2V0K.
Please refer to the document for exact specifications by model.
