D2SB40, D2SB05, Standard Bridge Rectifier

D2SB05 * D2SB80 Taiwan Semiconductor 2A, 50V - 800V Standard Bridge Rectifier .
only.

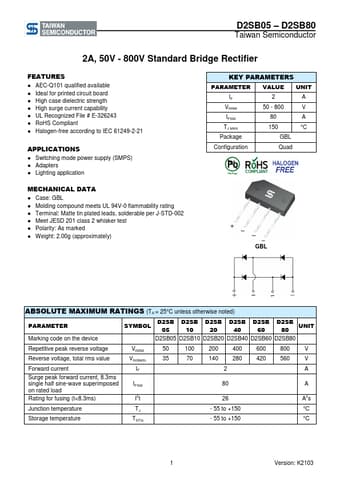

datasheet Preview Page 1 from Datasheet4u.com

D2SB05_TaiwanSemiconductor.pdf

D2SB40 Datasheet Preview — This datasheet PDF includes multiple part numbers: D2SB40, D2SB05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

D2SB40, D2SB05

Manufacturer:

Taiwan Semiconductor

File Size:

400.56 KB

Description:

Standard Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: D2SB40, D2SB05.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Ideal for printed circuit board
* High case dielectric strength
* High surge current capability
* UL Recognized File # E-326243
* RoHS Compliant

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 2 A 50 - 800 V IFSM TJ MAX Package 80 A 150 °C GBL Configuration Quad MECHANICAL DATA
* Case: GBL
* Molding compound meets UL 94V-0 flammability rati
