GBL005 - Glass Passivated Single Phase Bridge Rectifiers

GBL005 Description

GBL005 - GBL10 Taiwan Semiconductor CREAT BY ART 4A, 50V - 1000V Glass Passivated Single Phase Bridge Rectifiers .
AEC-Q101 qualified Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.

GBL005 Features

* - Glass passivated junction - Ideal for printed circuit board - High case dielectric strength - Typical IR less than 0.1μA - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 MECHANICAL DATA Case: GB

GBL005 Applications

* Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. Document Number: DS_D1408053 Version: J15

📥 Download Datasheet

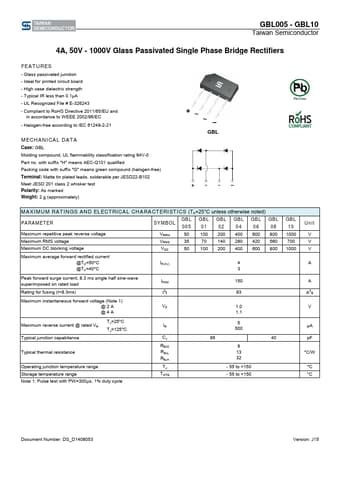

Preview of GBL005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBL005
Manufacturer
Taiwan Semiconductor
File Size
201.72 KB
Datasheet
GBL005-TaiwanSemiconductor.pdf
Description
Glass Passivated Single Phase Bridge Rectifiers
