GBL01

Glass Passivated Single Phase Bridge Rectifiers

GBL01 Features

* - Glass passivated junction - Ideal for printed circuit board - High case dielectric strength - Typical IR less than 0.1μA - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 MECHANICAL DATA Case: GB

GBL01 General Description

AEC-Q101 qualified Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 5 Heat-sink 4 Mounting 2"x3"x0.25" Al-Plate 3 2 P.C.B. Mounting 1 0.5"x0.5" copper pads 0 0 20 40 60 80 100 120 140 160 AMBIE.

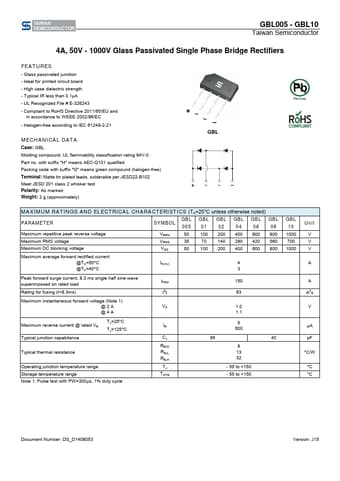

GBL01 Datasheet (201.72 KB)

Preview of GBL01 PDF

Datasheet Details

Part number:

GBL01

Manufacturer:

Taiwan Semiconductor

File Size:

201.72 KB

Description:

Glass passivated single phase bridge rectifiers.
