GBL02, GBL005, Glass Passivated Single Phase Bridge Rectifiers

GBL005 - GBL10 Taiwan Semiconductor CREAT BY ART 4A, 50V - 1000V Glass Passivated Single Phase Bridge Rectifiers .
AEC-Q101 qualified Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.

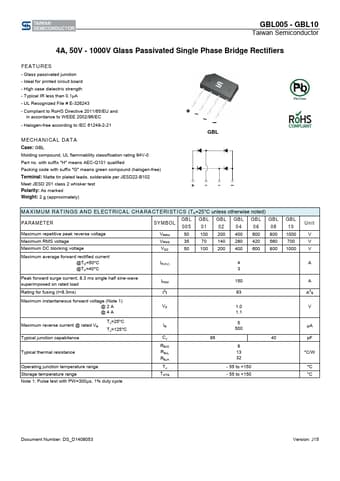

datasheet Preview Page 1 from Datasheet4u.com

GBL005-TaiwanSemiconductor.pdf

GBL02 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBL02, GBL005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBL02, GBL005

Manufacturer:

Taiwan Semiconductor

File Size:

201.72 KB

Description:

Glass Passivated Single Phase Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: GBL02, GBL005.
Please refer to the document for exact specifications by model.

Features

* - Glass passivated junction - Ideal for printed circuit board - High case dielectric strength - Typical IR less than 0.1μA - UL Recognized File # E-326243 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 MECHANICAL DATA Case: GB

Applications

* Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. Document Number: DS_D1408053 Version: J15
