GP10G, GP10A - 1.0 AMP. Glass Passivated Junction Plastic Rectifiers

Taiwan Semiconductor

Datasheet Details

Part number	GP10G, GP10A
Manufacturer	Taiwan Semiconductor ↗
File Size	52.80 KB
Description	1.0 AMP. Glass Passivated Junction Plastic Rectifiers
Datasheet	GP10A-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: GP10G, GP10A. Please refer to the document for exact specifications by model.

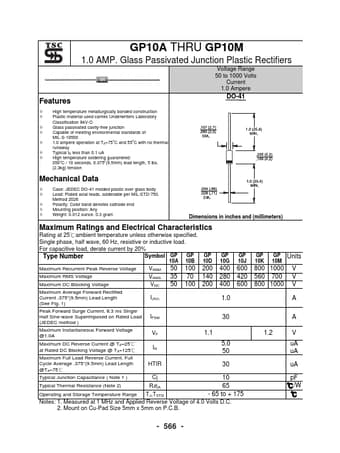

1.0 AMP. Glass Passivated Junction Plastic Rectifiers Voltage Range 50 to 1000 Volts Current 1.0 Ampere DO-41 High temperature metallurgically bonded construction Plastic material used carries Underwriters Laboratory Classification 94V-O Glass passivated cavity-free junction Capable of meeting environmental standards of MIL-S-19500 1.0 ampere operation at TA=75oC and 55oC with no thermal runaway Typical IR less than 0.1 uA High temperature soldering guaranteed: 350oC / 10 seconds, 0.375”(9.5mm.
