LL4448, LL4148 High Speed SMD Switching Diode

LL4448 Description

LL4148/LL4448/LL914B Taiwan Semiconductor 150mA, 75V Surface Mount Switching Diode .
only.

LL4448 Features

* Low power loss, high efficiency
* High surge current capability
* Hermetically sealed glass

LL4448 Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* On-board DC/DC converter KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM VF at IF = 100mA TJ MAX Package 150 mA 75 V 4 A 1 V 175 °C MMELF Configuration Single die MECHANICAL DATA
* Case: MM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LL4448, LL4148. Please refer to the document for exact specifications by model.

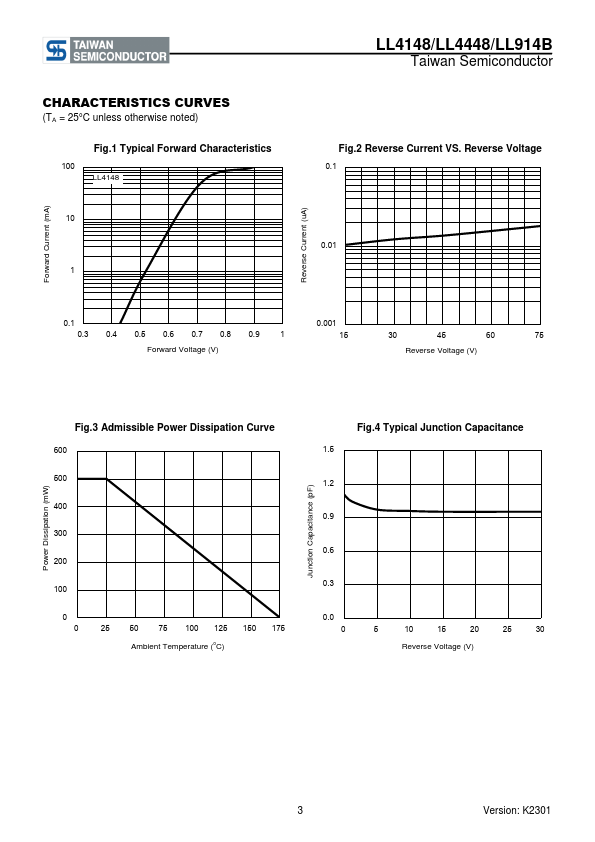

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LL4448, LL4148
Manufacturer
Taiwan Semiconductor
File Size
239.96 KB
Datasheet
LL4148-TaiwanSemiconductor.pdf
Description
High Speed SMD Switching Diode
Note
This datasheet PDF includes multiple part numbers: LL4448, LL4148.
Please refer to the document for exact specifications by model.
