LSR104

Surface Mount Schottky Barrier Rectifiers

LSR104 Features

* - Plastic package has carries underwriters - Ideal for automated placement - Surge overload rating to 25 Ampers peak - Reliable low cost construction utilizing molded plastic technique results in in-expensive product - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Ter

LSR104 General Description

Multiple manufacture source Define manufacture source PACKAGE OUTLINE DIMENSIONS MELF SUGGEST PAD LAYOUT DIM. A B C ` Unit (mm) Min 4.80 2.25 0.30 Max 5.50 2.67 0.60 Unit (inch) Min 0.189 0.089 0.012 Max 0.217 0.105 0.024 DIM. C G X X1 Y Unit (mm) Typ. 4.80 3.30 1.50 6.30 2.70 Unit (inch).

LSR104 Datasheet (197.88 KB)

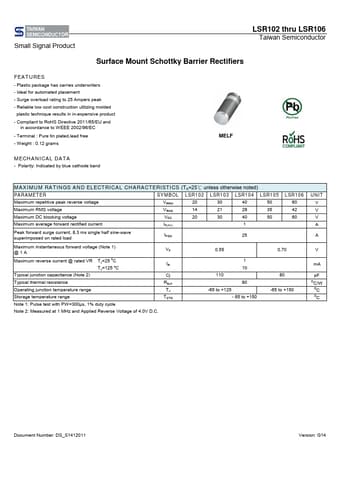

Preview of LSR104 PDF

Datasheet Details

Part number:

LSR104

Manufacturer:

Taiwan Semiconductor

File Size:

197.88 KB

Description:

Surface mount schottky barrier rectifiers.
