MBRF1560CT-Y, MBRF1545CT-Y - Dual Common Cathode Schottky Rectifiers

MBRF1560CT-Y Description

MBRF1545CT-Y - MBRF15200CT-Y Taiwan Semiconductor CREAT BY ART 15A, 45V - 200V Dual Common Cathode Schottky Rectifiers .
only.

MBRF1560CT-Y Features

* - Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition MECHANICAL DATA Case: ITO-220AB Molding compound, UL flammabil

MBRF1560CT-Y Applications

* Customers using or seling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. Document Number: DS_D1405047 Version: B15

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF1560CT-Y, MBRF1545CT-Y. Please refer to the document for exact specifications by model.

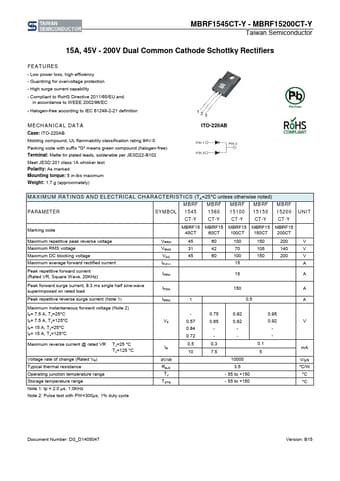

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF1560CT-Y, MBRF1545CT-Y
Manufacturer
Taiwan Semiconductor
File Size
256.00 KB
Datasheet
MBRF1545CT-Y-TaiwanSemiconductor.pdf
Description
Dual Common Cathode Schottky Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBRF1560CT-Y, MBRF1545CT-Y.
Please refer to the document for exact specifications by model.
