MURF1660CT

Power Rectifier

MURF1660CT Features

* — — — — — — — — — — UL Recognized File # E-326243 Ultrafast 35 and 60 Nanasecond Recovery times 175℃ operating Junction Temperature Popular ITO-220AB Package Expoxy meets UL94, V0 @ 1/8" High temperature glass passivated junction High voltage capability to 600 volts Low leakage specified @ 150℃ case

MURF1660CT Datasheet (389.92 KB)

Preview of MURF1660CT PDF

Datasheet Details

Part number:

MURF1660CT

Manufacturer:

Taiwan Semiconductor

File Size:

389.92 KB

Description:

Power rectifier.

📁 Related Datasheet

MURF1660CT - (MURF1620CT - MURF1660CT) Switchmode Power Rectifiers (TSC)
MURF1620CT THRU MURF1660CT 16.0 AMPS. Switchmode Power Rectifiers Voltage Range 200 to 600 Volts Current 16.0 Ampere Features Ultrafast 35 and 60 Nan.

MURF1660CT - 16.0 Ampere Isolated Glass Passivated Ultra Fast Recovery Rectifier (Thinki Semiconductor)
MURF1605 thru MURF1660 ® Pb Pb Free Plating Product MURF1605 thru MURF1660 ITO-220AB .112(2.85) .100(2.55) .406(10.3) .381(9.7) .134(3.4) .118(3.0).

MURF1660CT - SUPER FAST RECOVERY SILICON RECTIFIER (KD)
MURF1605CT THRU MURF1660CT Reverse Voltage - 50 to 600 Volts SUPER FAST RECOVERY SILICON RECTIFIER Forward Current - 16.0 Ampere FEATURES The plast.

MURF1660CT - Power Rectifier (ON Semiconductor)
MURF1660CT Preferred Device SWITCHMODE™ Power Rectifier Designed for use in switching power supplies, inverters and as free wheeling diodes, these st.

MURF1660CT - Super Fast Rectifiers (Bruckewell)
MURF1605CT-1660CT Super Fast Rectifiers Features • Low forward voltage drop. • High current capability. • Low leakage current • RoHS pliant package.

MURF1660CT - Switchmode Power Rectifiers (LGE)
MURF1620CT-MURF1660CT 16.0AMP. Switchmode Power Rectifiers ITO-220AB Features Ultrafast 35 and 60 Nanosecond Recovery times Popular ITO-220AB Packag.

MURF1660CT - Ultrafast Recovery Diode (BLUE ROCKET ELECTRONICS)
MURF1660CT Rev.F Mar.-2016 / Descriptions TO-220F  。 Ultrafast Recovery Diode in a TO-220F Plastic Package. DATA SHEET / Features ,。 Silicon ep.

MURF1660CT - Dual Ultrafast Plastic Rectifiers (EIC)
MURF1660CT Dual Ultrafast Plastic Rectifiers PRV : 600 Volts Io : 16 Ampere FEATURES : * Ideally suited for free wheeling diode power factor correct.

TAGS

MURF1660CT Power Rectifier Taiwan Semiconductor

Image Gallery

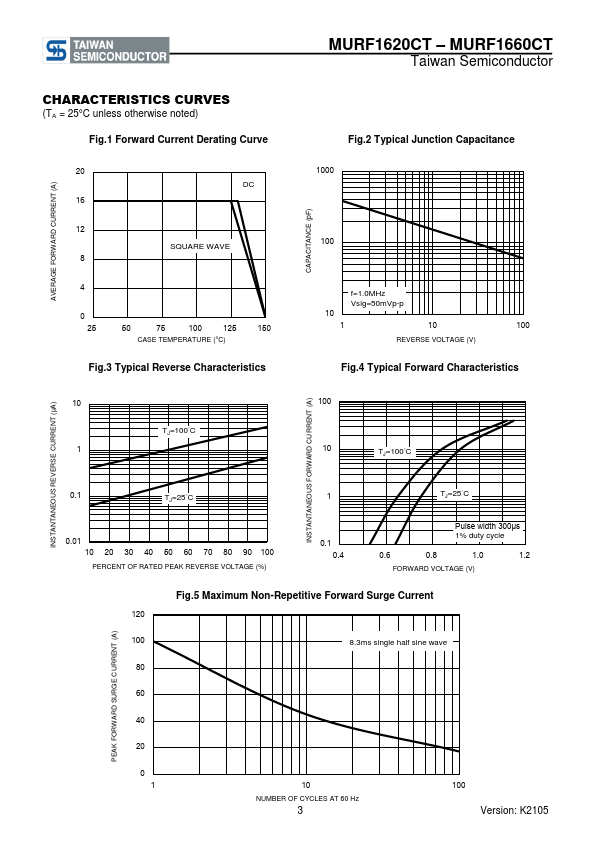

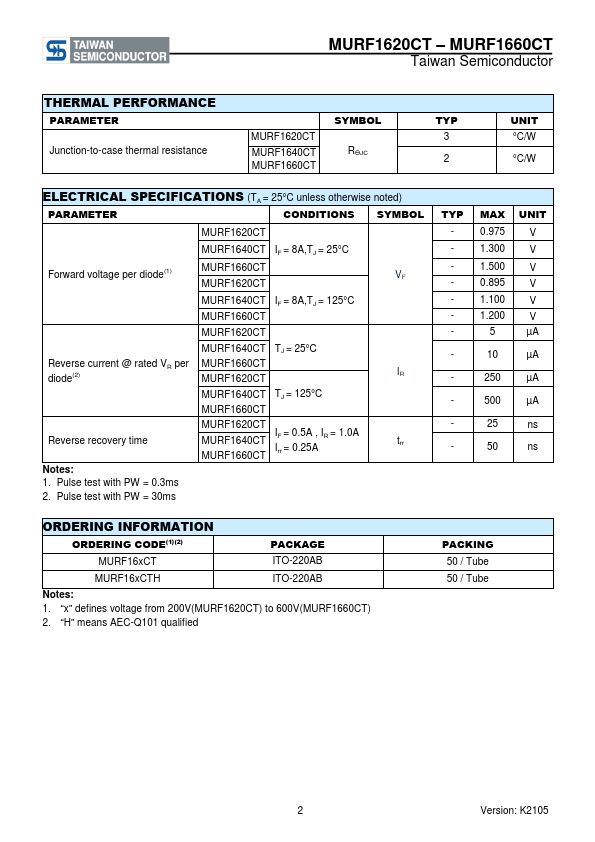

MURF1660CT Datasheet Preview Page 2 MURF1660CT Datasheet Preview Page 3
