RS1JLS - (RS1JLS - RS1MLS) Surface Mount Fast Recovery Rectifiers

Datasheet Summary

Description

FIG.

Features

  • - Ideal for automated placement - Compact package size - High surge current capability - Low power loss, high efficiency - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition Surface Mount Fast Recovery Rectifiers.

📥 Download Datasheet

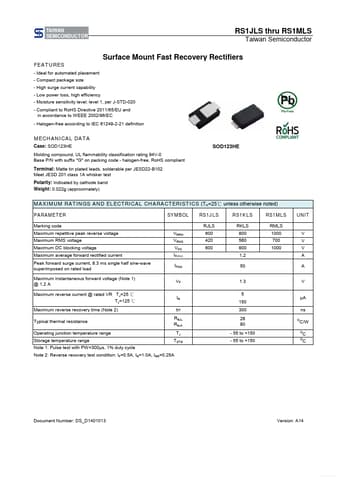

Datasheet preview – RS1JLS

Datasheet Details

Part number RS1JLS
Manufacturer Taiwan Semiconductor
File Size 399.45 KB
Description (RS1JLS - RS1MLS) Surface Mount Fast Recovery Rectifiers
Datasheet download datasheet RS1JLS Datasheet
