S3KH, Surface Mount Rectifier

S3AH * S3MH Taiwan Semiconductor 3A, 50V - 1000V Surface Mount Rectifier .
only.

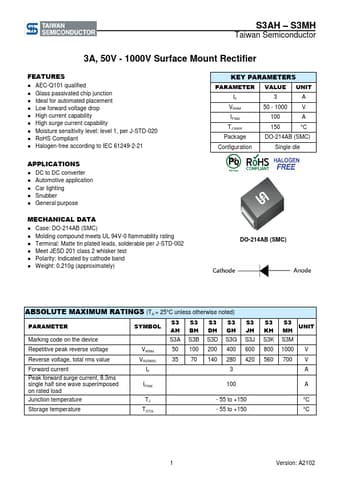

datasheet Preview Page 1 from Datasheet4u.com

S3KH-TaiwanSemiconductor.pdf

S3KH Datasheet Preview — Preview of S3KH PDF

Datasheet Details

Part number:

S3KH

Manufacturer:

Taiwan Semiconductor

File Size:

571.80 KB

Description:

Surface Mount Rectifier

Features

* AEC-Q101 qualified
* Glass passivated chip junction
* Ideal for automated placement
* Low forward voltage drop
* High current capability
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
* Halogen-free accordin

Applications

* DC to DC converter
* Automotive application
* Car lighting
* Snubber
* General purpose MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding compound meets UL 94V-0 flammability rating
* Terminal: Matte tin plated leads, solderable per J-STD-002
* Meet JESD 201 clas
