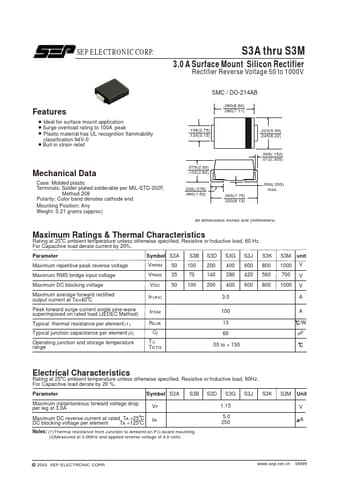

S3K - 3.0 A Surface Mount Silicon Rectifier

Datasheet Details

Ideal for surface mount application Surge overload rating to 100A peak Plastic material has UL recognition flammability classification 94V-0 Buit-in strain relief Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202F, Method 208 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.21 grams (approx) .260(6.60) .280(7.11) .108(2.75) .124(3.15) .220(5.59) .245(6.22) .079(2.00) .103(2.62) .030(.076) .060(1.52) .305(7.75) .320(8.13) .006(.
