S5B, Surface Mount Rectifier

S5A - S5M Taiwan Semiconductor 5A, 50V - 1000V Surface Mount Rectifier .

S5B-TaiwanSemiconductor.pdf

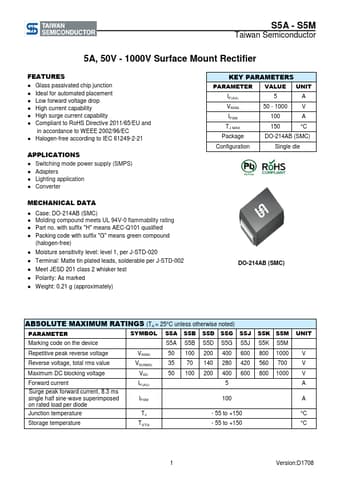

S5B Datasheet Preview — Preview of S5B PDF

Datasheet Details

Part number:

S5B

Manufacturer:

Taiwan Semiconductor

File Size:

385.58 KB

Description:

Surface Mount Rectifier

Features

* Glass passivated chip junction
* Ideal for automated placement
* Low forward voltage drop
* High current capability
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
* Halogen-free according to IEC 61249-2-21 A

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 5A 50 - 1000 V 100 A 150 °C DO-214AB (SMC) Configuration Single die MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding c
