S5K Surface Mount Rectifier

S5K Description

S5A - S5M Taiwan Semiconductor 5A, 50V - 1000V Surface Mount Rectifier .

S5K Features

* Glass passivated chip junction
* Ideal for automated placement
* Low forward voltage drop
* High current capability
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
* Halogen-free according to IEC 61249-2-21 A

S5K Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 5A 50 - 1000 V 100 A 150 °C DO-214AB (SMC) Configuration Single die MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding c

📥 Download Datasheet

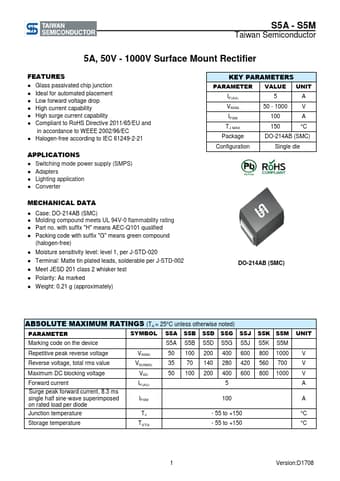

Preview of S5K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S5K
Manufacturer
Taiwan Semiconductor
File Size
385.58 KB
Datasheet
S5K-TaiwanSemiconductor.pdf
Description
Surface Mount Rectifier
