S5M

The S5M is Surface Mount Rectifier designed by Taiwan Semiconductor.

Product Overview

Taiwan Semiconductor

📥 Download Datasheet

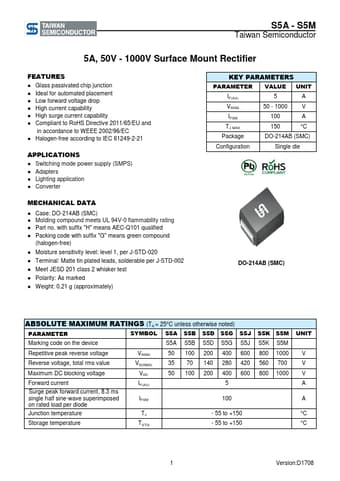

S5M Surface Mount Rectifier by Taiwan Semiconductor - Datasheet Preview — Datasheet preview – S5M

Datasheet Details

Part number	S5M
Manufacturer	Taiwan Semiconductor
File Size	385.58 KB
Description	Surface Mount Rectifier
Datasheet	S5M-TaiwanSemiconductor.pdf
Additional preview pages of the S5M datasheet.

Product details

Features

Glass passivated chip junction.
Ideal for automated placement.
Low forward voltage drop.
High current capability.
High surge current capability.
Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC.
Halogen-free according to IEC 61249-2-21.
