SA30 Transient Voltage Suppressor Diodes

SA30 Description

SA SERIES .

SA30 Features

* Transient Voltage Suppressor Diodes Voltage Range 5.0 to 170 Volts 500 Watts Peak Power 1.0 Watt Steady State DO-15 Plastic package has Underwriters Laboratory Flammability Classification 94V-0 500W surge capability at 10 X 10us waveform, duty cycle: 0.01% Excellent clamping capability Low zener i

SA30 Applications

* Notes: 1. For Bidirectional Use C or CA Suffix for Types SA5.0 through Types SA170. Notes: 2. Electrical Characteristics Apply in Both Directions. - 632 - PPPM, PEAK PULSE POWER, KW PEAK PULSE CURRENT - % RATINGS AND CHARACTERISTIC CURVES (SA SERIES) FIG.1- PEAK PULSE POWER RATING CURVE 40 NO

📥 Download Datasheet

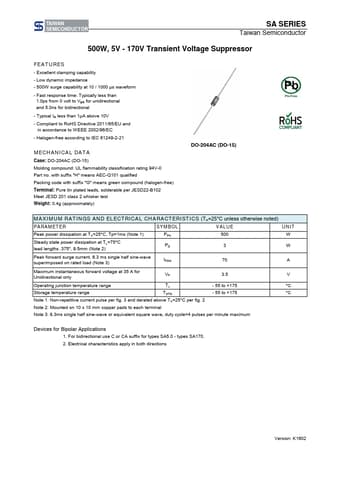

Preview of SA30 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA30
Manufacturer
Taiwan Semiconductor
File Size
195.33 KB
Datasheet
SA30-TaiwanSemiconductor.pdf
Description
Transient Voltage Suppressor Diodes
