SBT607, SBT601 Datasheet - Taiwan Semiconductor

SBT607 Single Phase 6.0 AMPS. Silicon Bridge Rectifiers

SBT607 Features

* a UL Recognized File # E-96005 a Surge overload rating 200 amperes peak a Low forward voltage drop a High temperature soldering guaranteed: 250+ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension a Small size, simple installation a Leads solderable per MIL-STD-202 Method 208

SBT601-TaiwanSemiconductor.pdf

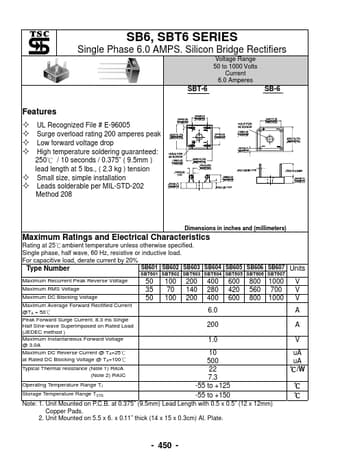

SBT607 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBT607, SBT601. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBT607, SBT601

Manufacturer:

Taiwan Semiconductor

File Size:

106.18 KB

Description:

Single phase 6.0 amps. silicon bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SBT607, SBT601.
Please refer to the document for exact specifications by model.
