SFT15, SFT11 - (SFT11 - SFT18) Super Fast Rectifiers

Taiwan Semiconductor

Datasheet Details

Part number: SFT15, SFT11
Manufacturer: Taiwan Semiconductor
File Size: 84.54 KB

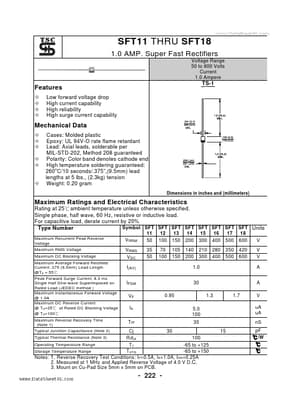

Datasheet: SFT11_TaiwanSemiconductor.pdf
Description: (SFT11 - SFT18) Super Fast Rectifiers
Note: This datasheet PDF includes multiple part numbers: SFT15, SFT11.
Please refer to the document for exact specifications by model.

Low forward voltage drop High current capability High reliability High surge current capability TS-1 Mechanical Data Cases: Molded plastic Epoxy: UL 94V-O rate flame retardant Lead: Axial leads, solderable per MIL-STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end High temperature soldering guaranteed: 260 oC/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs. , (2.3kg) tension Weight: 0.20 gram Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characterist.
