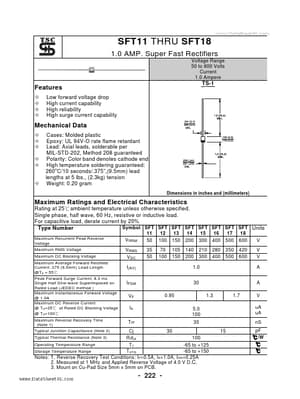

SFT11 - (SFT11 - SFT18) Super Fast Rectifiers

Taiwan Semiconductor

Datasheet Details

Low forward voltage drop High current capability High reliability High surge current capability TS-1 Mechanical Data Cases: Molded plastic Epoxy: UL 94V-O rate flame retardant Lead: Axial leads, solderable per MIL-STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end High temperature soldering guaranteed: 260 oC/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs. , (2.3kg) tension Weight: 0.20 gram Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characterist.
