SFT1102 - PNP Epitaxial Planar Silicon Transistor High-Voltage Switching Applications

Sanyo Semicon Device

📥 Download Datasheet

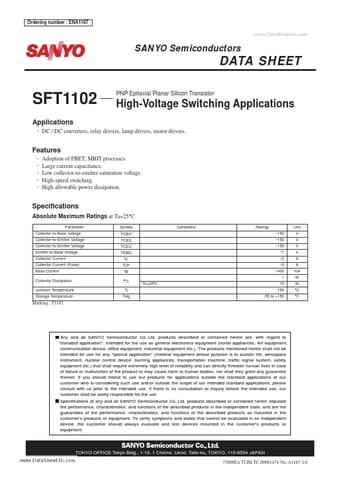

SFT1102 Datasheet Preview — Preview of SFT1102 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SFT1102
Manufacturer: Sanyo Semicon Device
File Size: 78.51 KB
Datasheet: SFT1102_SanyoSemiconDevice.pdf
Description: PNP Epitaxial Planar Silicon Transistor High-Voltage Switching Applications

SFT1102 Product details

Features

Adoption of FBET, MBIT processes. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. High allowable power dissipation. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperatu.
