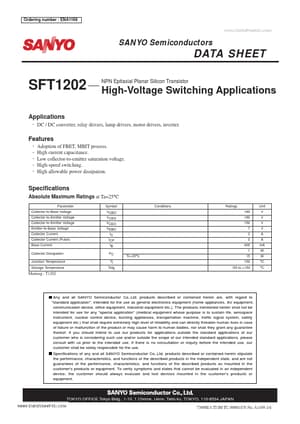

SFT1202 - NPN Transistor

Sanyo Semicon Device

Datasheet Details

Adoption of FBET, MBIT process. High current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. High allowable power dissipation. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature.
