SFT1192-59 PNP TRANSISTOR

SSDI

Description

SOLID STATE DEVICES, INC.14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@ssdi-power.com * w.

📥 Download Datasheet

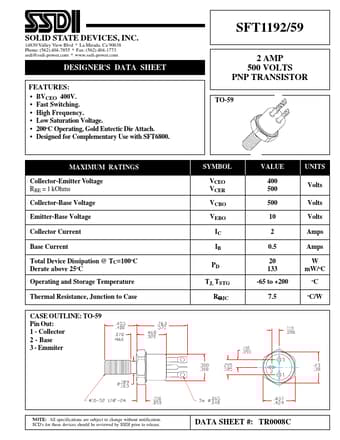

SFT1192-59 Datasheet Preview — Preview of SFT1192-59 PDF

Datasheet Specifications

Part number: SFT1192-59
Manufacturer: SSDI
File Size: 40.58 KB
Datasheet: SFT1192-59-SSDI.pdf
Description: PNP TRANSISTOR

Features

* BVCEO 400V.
* Fast Switching.
* High Frequency.
* Low Saturation Voltage.
* 200oC Operating, Gold Eutectic Die Attach.
* Designed for Complementary Use with SFT6800. MAXIMUM RATINGS Collector-Emitter Voltage RBE = 1 kOhms Collector-Base Voltage Emit
