SFT10000-3 - NPN DARLINGTON TRANSISTOR

SSDI

Datasheet Details

Part number	SFT10000-3
Manufacturer	SSDI
File Size	110.13 KB
Description	NPN DARLINGTON TRANSISTOR
Datasheet	SFT10000-3 Datasheet
Additional preview pages of the SFT10000-3 datasheet.

📁 Similar Datasheet

SFT1001 - (SFT1001 / SFT1003) 100AMP HIGH SPEED PNP TRANSISTOR 250 VOLTS (Solid States Devices)
SFT1002 - (SFT1002 / SFT1004) 100 AMP HIGH SPEED NPN TRANSISTOR 250 VOLTS (Solid States Devices)
SFT1003 - (SFT1001 / SFT1003) 100AMP HIGH SPEED PNP TRANSISTOR 250 VOLTS (Solid States Devices)
SFT1004 - (SFT1002 / SFT1004) 100 AMP HIGH SPEED NPN TRANSISTOR 250 VOLTS (Solid States Devices)
SFT10.7 - CERAMIC FILTER (Murata)
SFT10.7MA5 - FILTERS (Murata Electronics)
SFT10.7MA5-Z - CERAMIC FILTER (Murata)
SFT10.7MS2 - FILTERS (Murata Electronics)
SFT10.7MS2-Z - CERAMIC FILTER (Murata)
SFT10.7MS3 - FILTERS (Murata Electronics)

Other Datasheets by SSDI

SFT1192 - PNP TRANSISTOR
SFT1192-59 - PNP TRANSISTOR
SFT1192S.5 - PNP Transistor
SFT2010 - High Energy NPN Transistor
SFT2012 - High Energy NPN Transistor
SFT2014 - High Energy NPN Transistor
SFT2222A2 - Dual Microminiature Package 800 mA 75 Volts Dual NPN Transistor
SFT22907GW - Dual Microminiature Package 600 mA 60 Volts Complimentary NPN & PNP Transistor

Full PDF Text Transcription

Click to expand full text

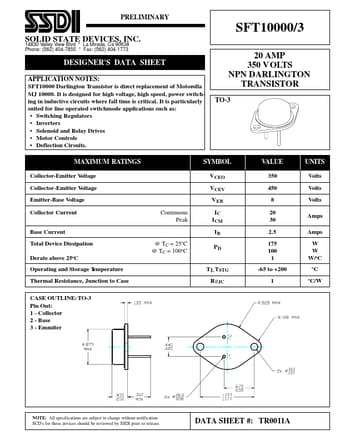

PRELIMINARY SFT10000/3 SOLID STATE DEVICES, INC. 14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 DESIGNER'S DATA SHEET APPLICATION NOTES: SFT10000 Darlington Transistor is direct replacement of Motorolla MJ 10000. It is designed for high voltage, high speed, power switching in inductive circuits where fall time is critical. It is particularly suited for line operated switchmode applications such as: • Switching Regulators • Inverters • Solenoid and Relay Drives • Motor Controls • Deflection Cirsuits.
